A Brief Introduction to Spring Boot
Software Development
Pavan Sunny Thomas October 30, 2024

Today, in the fast-paced digital world, speed and agility are pivotal for successful software development. For Java developers, long winded set up processes delay the progress. Typically, conventional Java application development needs complex set up and consumes time. But fret not, Spring Boot is a game changer.

The flexible framework facilitates building web applications, application programming interfaces, and services. Top of all, developers can focus on writing business logic instead of the tedious setup. In this article, we shall look into the Spring Boot framework, its upsides, and why it is considered an excellent choice for developers wanting to improve productivity and efficiency.

What is Spring Boot?

An open-source Java-based framework for creating stand-alone, production-grade Spring-based applications with minimal configuration, Spring Boot forms part of a larger Spring Framework ecosystem. Further, it simplifies the development process through automatic configurations and tools.

Why Spring Boot?

Rod Jonhson, Juergen Hoeller, and Yann Caroff created the open-source Spring framework in 2003 to facilitate Java server-side development and enable development teams to produce applications more rapidly.

Even though it increased the easiness and reliability of the application, it had its fair share of problems, out of which 3 fundamental issues where:

  • The increasing number of XML files coupled with different configuration increased code complexity.
  • Since all Java EE features were supported by default, everything should be configured, which resulted in bloated code.
  • Managing components becomes tedious when the project size and dependencies increase.

An issue filed on the Spring GitHub repo title in 2012, “Improved support for ‘containerless’ web application architectures” in which the author, Mike Youngstrom had made a call to simplify Spring’s web application architecture.

Mr. Phil Webb was a member of the Spring team. On August 6, 2013, Phil wrote, that instead of resolving this as part of the core Spring Framework, they wanted to start a new project called Spring Boot that resolves all issues. Phil Webb was a member of the team that created the Spring Boot.

What are the key components, concepts, and advantages of Spring Boot?

  • Auto-Configuration: It is possible to automatically co-create Spring application as per the dependencies added. Thus, it minimizes the need for manual setup.
  • Standalone Applications: This helps you to build applications that are able to run independently. Also, you don’t need an external web server. Spring Boot applications are packaged as executable JAR or WAR files.
  • Embedded Servers: Spring boot applications feature embedded servers like Tomcat, Jetty, or Undertow. Further, it implies that you are not required to deploy your application to an external server. As a result, it simplifies and hastens the development and deployment process.
  • Production-Ready Features: It is easy to monitor, manage and log your application in a production environment in Spring boot. Also, it supports metrics, health checks, and externalized configuration.
  • Opinionated Defaults: You can customize the default configurations and sensible defaults for various aspects of your application in accordance with your needs. Further, it reduces the boilerplate code and accelerates the entire development process.
  • Spring CLI: The command-line tool assists you in prototyping rapidly with Spring Boot applications with the help of Groovy scripts.
  • Extensive Ecosystem: It helps you integrate with the wider Spring ecosystem. Moreover, it allows you to take advantage of other spring projects such as Spring Security, Spring Data, Spring Cloud, and Spring MVC.

Spring Architecture

Typically, the Spring Framework’s architecture focuses on dependency injection and aspect-oriented programming, empowering developers to create modular and loosely coupled applications.

At the heart of spring architecture is the Inversion of Control (IoC) container, which handles object lifecycles and wiring. Also, it supports various Spring Data for database integration and modules like Spring MVC for web development, ensuring flexibility and scalability.

Dependency Injection (DI)

Dependency Injection (DI) is a design pattern that reduces the coupling between the application components and keeps the application more modular and easier to maintain.

Moreover, it helps manage how objects obtain their dependencies, for example, services or objects for their functioning.

The Spring framework supports an Inversion of Control (IoC) container that manages JavaBeans, and the ApplicationContext. Also, it provides a centralized view of the entire application’s configuration.

Aspect Oriented Programming (AOP)

Aspect-Oriented Programming (AOP) helps developers modularize cross-cutting concerns, for example, logging, security, and transaction management, and apply them to several components of an application.

As a result, it offers code modularity and reusability. Moreover, the Spring framework has an AOP framework that handles cross-cutting concerns in the application.

The Spring framework architecture relies on separation of concerns, modularity, and flexibility as it uses a set of tools to build powerful and scalable applications.

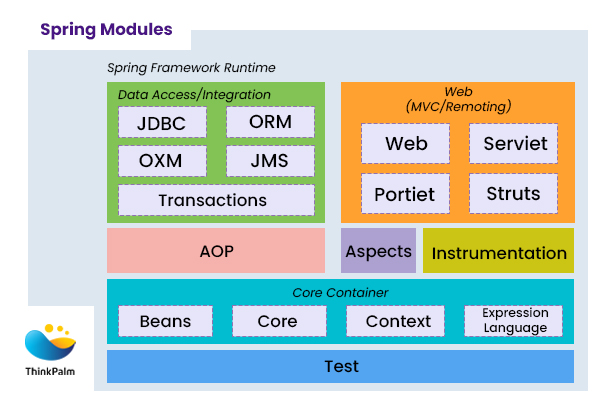

Spring Modules

The Spring framework covers several modules. It is classified into four major areas:

  • Core Container
  • Data Access/Integration
  • Web
  • Miscellaneous

Spring Framework

Core Container

The Core Container deals with the fundamental functionality of the Spring framework. Also,  it includes the Inversion of Control (IoC) container and the ApplicationContext. The following modules are related to Core Container:

  • Spring Core: This module features IoC and DI and offers the fundamental functionality of the Spring framework. The IoC container is at the core of the Spring Framework. Further, it creates and manages instances of JavaBeans. Additionally, it uses dependency injection to wire the beans together.
  • Spring Context: This module features the ApplicationContext, an advanced version of the BeanFactory. Further, it provides additional features, for example, resource loading and internationalization along with the ability to publish and consume events.
  • Spring Beans: The basic building block of the IoC container is BeanFactory. Spring beans features BeanFactory and the BeanWrapper, that manages the lifecycle of a bean. The Bean Factory is the fundamental interface that helps access the IoC container. Also, it helps retrieve beans using several methods.
  • Spring Expression Language (SpEL): This module is responsible for offering a powerful expression language during run time for querying and manipulating objects. SpEL assists in property access, conditionals, method invocation, loops, and type conversion. Also, it has features that help assess variables and functions defined in the application context and define custom functions and variables.

Data Access/Integration

Spring Data features automatic CRUD (Create, Read, Update, Delete) operations, query generation, provides support for pagination. Also, for sorting, along with Spring’s transaction management integration, and many more.

Apart from these, Spring Data supports common data access patterns like data access objects (DAO) and repositories.

The Data Access/Integration offers support for integrating with databases and other data sources. It includes the following modules:

Spring JDBC

This module provides JDBC abstraction layer that reduces the boilerplate code required to work with JDBC. Also, it supports transaction management, facilitating developers handle database transactions declaratively with the help of transaction management.

Spring ORM

This module assists in integration with Object-Relational Mapping (ORM) frameworks. For example, Hibernate and JPA. Spring ORM has higher-level abstraction layer on top of ORM frameworks. As a result, it helps developers to write less boilerplate code. Further, it effortlessly integrates ORM technologies with other Spring features (transaction management and caching).

Spring OXM

This module provides a unified abstraction and encapsulation layer for popular O-X mapping frameworks (such as Castor, JAXB, XMLBeans, and XStream).

Additionally, it streamlines the process of marshalling or unmarshalling data between Java objects and XML representations.

Spring JMS

This module provides a high-level, easy-to-use API that connects message brokers, send messages, and process them asynchronously. It abstracts the complexities of working with the JMS API, making it more developer-friendly.

It uses @jmsTemplate for message production and synchronous message reception and @JmsListener to create message listeners in Spring-managed beans.

Spring JMS promotes loose coupling by handling how objects obtain their JMS dependencies and seamlessly integrates with various message brokers (e.g., Apache ActiveMQ, RabbitMQ).

Spring Transaction

This module provides support for declarative transaction management in Spring applications. Furthermore, it supports several transaction propagation, and isolation levels, allowing developers to manage transactions at various levels of granularity.

Also, spring transaction takes care of different transaction management approaches; for example, a JTA transaction manager or a JDBC transaction manager.

Web Container

Spring Web focuses on web-related features and integration for building web applications.

Spring Web provides functionality to handle multipart file uploads. This is essential for processing files (e.g., images, documents) submitted via web forms.

When your web application starts, Spring initializes its Inversion of Control (IoC) container using servlet listeners. These listeners ensure that Spring’s beans are ready for use and are properly wired together, even in a web context.

  • Spring Web Servlet:This module provides a Model-View-Controller (MVC) framework for building web applications. The MVC framework offers several features for example, for form handling, managing HTTP requests and responses, data binding, validation, different view technologies, (JavaServer Pages), Thymeleaf, and Velocity.
  • Spring Web Struts: This module contains the support classes for a classic Struts integration web tier inside a Spring application.Now, this support has been deprecated as of Spring 3.0.
  • Spring Web Portlet: The Spring Web-Portlet module provides the MVC (Model-View-Controller) implementation for portlet environments. Just like Spring MVC for servlets, Spring Web-Portlet simplifies request handling, dispatching requests to controllers, and other portlet-specific features.JSR-286 (Java Portlet Specification) defines a unique workflow for portlets:

The two distinct phases in Portlet requests include:

  • Action Phase: Executed once for backend changes (e.g., database updates).
  • Render Phase: Produces what is displayed to the user (refreshed multiple times).

Spring Web-Portlet preserves this separation, allowing clean handling of state modification and rendering.

AOP and Aspect Modules

AOP is a programming paradigm that helps modularizing the cross-cutting concerns (for example security, logging, and transaction management) distinctively from the core application logic.

In Spring, these modules enable you to define aspects (cross-cutting concerns). Also, apply them to specific parts of your code (e.g., methods).

Key concepts in Spring AOP

  • Advice: Code that runs at specific points (e.g., before, after, or around method execution).
  • Pointcuts: Expressions that define where some advice should be applied (e.g., all methods in a specific class).
  • Join Points: Specific points in the execution of your program (e.g., method invocations).

You can set up Spring AOP using XML or annotations.

Instrumentation

Instrumentation involves modifying or enhancing classes at runtime. In Spring, the Instrumentation module provides support for class instrumentation and `classloader implementations`. It allows you to manipulate classes dynamically, for example, to add monitoring or profiling capabilities.

Also, instrumentation is often used for performance analysis, debugging, and other runtime modifications.

Instrumentation typically involves modifying or observing code execution at runtime, and Spring Actuator provides a way to observe and manage your Spring Boot application.

Spring Actuator is a module that supports production-ready features and also monitors and manages Spring Boot applications. Firther, it exposes various endpoints (accessible via HTTP or JMX) that allow you to gather runtime information about your application.

Examples of endpoints provided by Spring Actuator include /health, /metrics, /info, and /env. These endpoints help you monitor application health, performance metrics, and other operational aspects.

Test

Spring Test simplifies testing Spring components, ensuring consistent context loading and providing mock objects for effective unit testing. Further, spring test supports both unit testing and integration testing of Spring components using JUnit or TestNG.

Spring Test ensures consistent loading and caching of Spring ApplicationContexts during tests and provides mock objects that allow you to test your code in isolation.

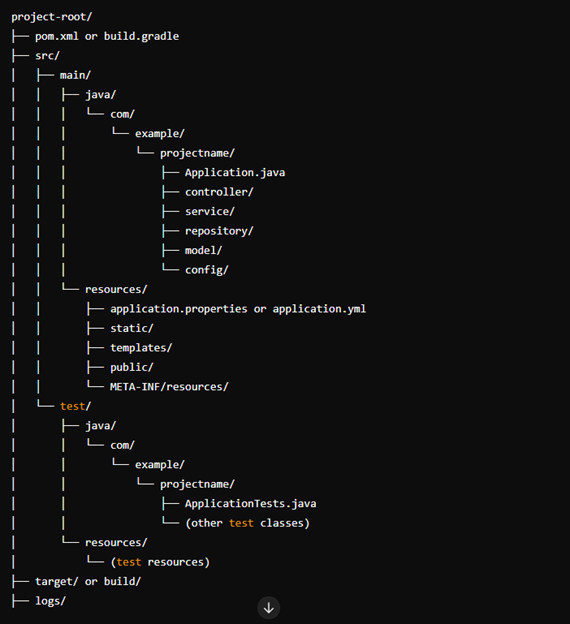

Project Structure

Spring Boot projects have a streamlined structure to keep things organized and efficient. At the top, you have the src directory, housing your main application code and resources.

Within src/main, you will find java for your Java files, resources for configuration files like application.properties, and webapp for web resources.

The src/test directory mirrors this structure for your test code. The root directory includes files like pom.xml or build.gradle for managing dependencies.

This clear, hierarchical layout makes it easy to navigate and manage your project.

  • Root Directory

pom.xml or build.gradle: It is the build configuration file for Maven or Gradle. It features plugins, project dependencies, and other build-related configurations.

src: is the source directory that features the application code and resources.

  • src/main/java

Contains the main application code.

com.example.projectname: is the base package for your application and features a hierarchical structure.

Application.java: The key entry point of the Spring Boot application, annotated with @SpringBootApplication.

controller: includes the REST controllers for handling HTTP requests.

service: features the service layer that implements the business logic.

repository: includes the repository interfaces for data access, and often extends to Spring Data JPA repositories.

model: features the domain models and entities that represent the data.

config: Contains security configurations, database configurations, and so on.

  • src/main/resources

application.properties or application.yml: is the key configuration file for the Spring Boot application.

static: includes static files like HTML, JavaScript, CSS, and images.

templates: feaures server-side templates ( For example, FreeMarker, Thymeleaf) for rendering views.

public: is an alternative location for static files, that are used for public resources.

META-INF/resources: is another alternative location for static files.

  • src/test/java

Includes test classes.

com.example.projectname: is the base package for test classes, which often mirrors the structure of src/main/java.

Test classes for controllers, repositories, services, and other components.

ApplicationTests.java: is the major test entry point, annotated with @SpringBootTest.

  • src/test/resources

Includes configuration files and test data or any test-specific resources.

  • Other Directories

target or build: is the output directory for the compiled code which is generated by Maven or Gradle.

Logs: this is the optional directory used for storing application logs.

Other directories

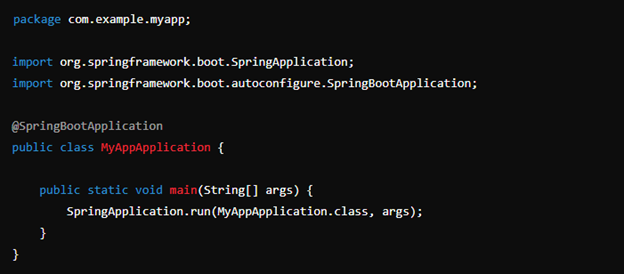

@SpringBootApplication

In a Spring Boot application, the main class acts as the application entry point. Usually, this class is annotated with @SpringBootApplication. Also, it is a convenient annotation that can combine other annotations.

@SpringBootApplication

The @SpringBootApplication annotation features three important annotations:

  • @EnableAutoConfiguration: tells Spring Boot to configure your application automatically in accordance with the dependencies you add. Spring Boot will configure web-related beans in case you have a dependency on spring-boot-starter-web; for example, a dispatcher servlet.
  • @ComponentScan: It instructs Spring to scan for Spring components for example, @Controller, @Repository, @Service, and @Component annotations within the current package and its sub-packages. Therefore, it is advised to place the main class in the project’s root package.
  • @Configuration: It shows that the Spring IoC container can use the class to create and define beans. Additionally, it lets you define @Bean methods that instantiate and configure beans.

How does it work together?

When you run the main method, several things happen:

  • SpringApplication.run: This static method starts the Spring application and implements the default configuration. Also, starts the Spring application context, and performs class path scanning for components.
  • Component Scanning: The @ComponentScan annotation checks and ensures that the Spring scans the package of the main class. Also, component scanning verifies if Spring scans sub-packages for Spring-managed components (beans).
  • Auto-Configuration: The @EnableAutoConfiguration annotation helps auto-configuration. Further, it assists in configuring Spring application as per the jar dependencies included. Additionally, you don’t need any need for extensive configuration to get started.

Final Remarks

Many of the complexities and challenges inherent in the traditional Spring Framework gets addressed by Spring Boot. Also, it follows convention over configuration, provides auto-configuration, and integrates with various technologies effortlessly.

Spring Boot features a robust, developer-friendly platform to speed up web development and offers easy maintenance. Further, the streamlined configuration and production-ready features help developers focus on writing code. Therefore, it further assists in the rapid delivery of products.
